What Goes Under the Membrane
The membrane gets the attention. The insulation, cover board, and deck underneath decide whether it stays dry and flat.
Insulation. Current energy codes in our region put most commercial replacement roofs at R-30, which we meet with two layers of 2.6-inch polyiso with staggered joints. On top of that goes tapered insulation where the roof needs help moving water to the drains. The new height matters: a roof that had 2.5 inches of insulation now has more than 5. Curbs get raised, edge metal gets taller, and ladders get modified. At TE Connectivity, GSM Industrial rebuilt the wall-mounted ladder to reach the new roof. Rooftop units come off and go back on taller curbs, which is covered on our HVAC curb installs page.
Cover boards and vapor barriers. A cover board between the insulation and the membrane spreads foot traffic and hail loads and gives the adhesive something solid to grab. On the Wilson pool building, which has a wood deck over a natatorium, we mechanically fastened quarter-inch DensDeck Prime to the deck and applied a self-adhered Johns Manville vapor barrier before the insulation went down. At Emory Hill we used ISOGARD HD, a lightweight high-density cover board. Over a pool, a kitchen, or a plant with process humidity, the vapor barrier is not optional.
The deck. Metal, wood, and gypsum decks each take fasteners differently, and a tear-off is the only time anyone sees the deck. We check it for rust, rot, and fastener pull-through before anything new goes down and fix what we find while it is exposed.
Tear Off or Recover?
A recover means leaving the old membrane in place and installing the new roof over it. It saves the tear-off cost and the landfill, and it works when three things are true: the insulation under the old roof is dry, the deck is sound, and there is only one roof there already, since building codes allow two at most. We confirm the first two with an infrared scan and core samples during the inspection, not by guessing. When the insulation is wet, a recover traps the water and the new roof fails early, so everything comes off. The roof replacement page covers the signs that put a roof in that category and what drives the cost either way. For the numbers, see what a commercial roof costs per square foot.

60-Mil TPO Over R-30 at TE Connectivity, Landisville, PA
Building 108 had a ballasted 45-mil EPDM roof over 2.5 inches of EPS insulation. We removed all of it and installed 5.2 inches of polyiso to R-30 and a 60-mil white TPO membrane with a 20-year system warranty. The plant allowed no cranes and no flatbeds on site, every dumpster was tarped for runoff, and our crews stayed inside walkways and fall protection within six feet of the edge. GSM Industrial modified the access ladder for the new roof height and a subcontractor reinstalled 600 feet of lightning protection. The job finished ahead of schedule.

107,198 Square Feet of 90-Mil EPDM for Wilson School District, West Lawn, PA
The lower house and pool building had an out-of-warranty ballasted roof leaking throughout. We tore 87,500 square feet of ballasted EPDM off the lower house down to the deck, fastened two layers of 2.6-inch polyiso to R-30, and adhered a 30-year Johns Manville 90-mil EPDM assembly. The 19,716 square foot pool roof came off down to its wood deck and got DensDeck Prime, a self-adhered vapor barrier, R-30 in adhesive, and the same 30-year assembly. Work started in June so most of it finished over summer break, with alternate walk routes marked for the staff and students still on campus.

PVC Over a Kitchen at Franklin & Marshall’s Ben Franklin Dining Hall, Lancaster, PA
The exhaust curbs on a dining hall roof vent animal and vegetable oils, which break down some membranes, so this one had to be PVC. We tore off the gravel-surfaced built-up roof without contaminating the new sheet, primed the deck, set 2-inch polyiso and tapered insulation in low-rise foam adhesive, and fully adhered 6,556 square feet of 60-mil Carlisle FleeceBACK PVC in tan. The details are where a kitchen roof lives or dies: 423 feet of wall flashing with copper counterflashing, four soldered stainless scuppers, 140 feet of walkway to the equipment, and rooftop units lowered onto rebuilt curbs. Carlisle issued a 20-year warranty and GSM added a two-year workmanship warranty.

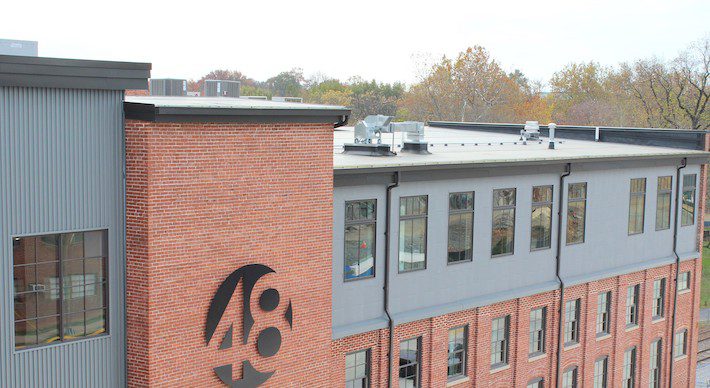

More of our single-ply work: a 160,000 square foot Lancaster manufacturing plant re-roofed to R-30 over live production with an interior containment system under the deck, the Cecil County building that houses a 911 call center, recovered with fully adhered 60-mil EPDM, and The Market at the Wilbur in Lititz, a 30-year Platinum Firestone EPDM roof under terrace pavers on a building that lost its crane access partway through construction.
